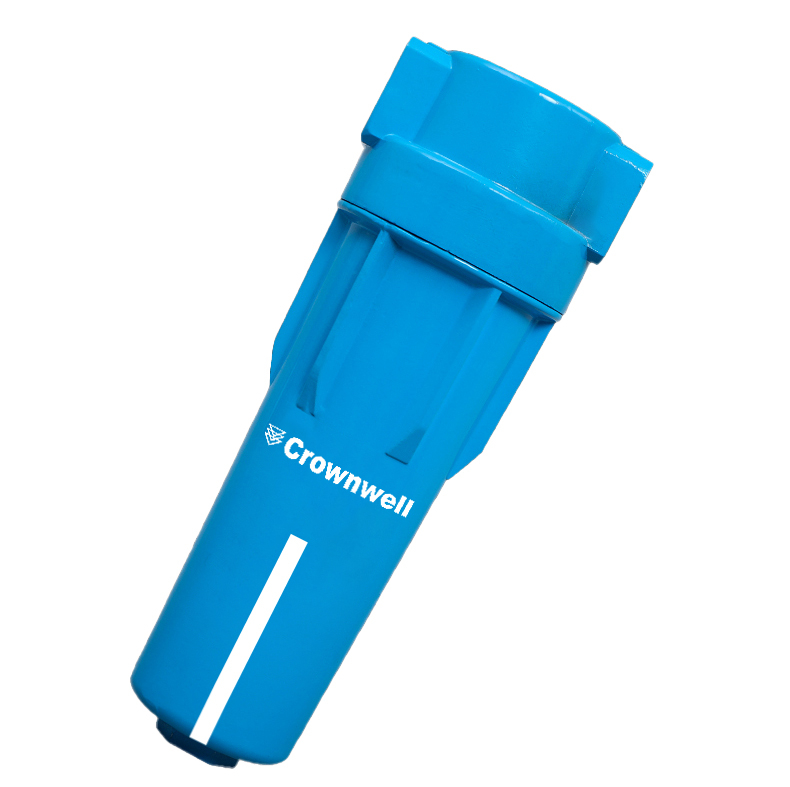

Crownwell Air Filter

Share to:

Quantity:

Parameter

Crownwell Air Filter

(0.60 – 310 m3/min)



TECHNICAL SPECIFICATIONS


Model (9/7/5/3/1)

Capacity

Connection

Weight

Kg

m3/min

HEF-0.5

0.60

ZG3/4”

1.5

HEF-001

1.50

ZG3/4” / 1”

1.5/2

HEF-002

2.40

ZG1”

2

HEF-004

4.00

ZG1.5”

3

HEF-005

5.00

ZG1.5”

3.8

HEF-007

7.00

ZG1.5”

4

HEF-010

11.00

ZG2”

5

HEF-013

13.80

ZG2”

5.5

HEF-015

15.00

ZG2.5”/DN80

8.2/12

HEF-020

20.00

ZG2.5”/DN80

8.5/13

HEF-025

25.00

DN80

15

HEF-030

30.00

DN80

25

HEF-035

35.00

DN80

30

HEF-040

45.00

DN100

32

HEF-055

55.00

DN125

40

HEF-060

66.00

DN125

52

HEF-075

75.00

DN125

55

HEF-088

88.00

DN125

80

HEF-110

110.00

DN150

93

HEF-132

132.00

DN150

105

HEF-154

154.00

DN200

143

HEF-180

180.00

DN200

180

HEF-200

200.00

DN200

185

HEF-230

230.00

DN200

190

HEF-250

250.00

DN200

196

HEF-280

280.00

DN250

200

HEF-300

310.00

DN250

230


· Grade HEF9 (3μm 5ppm) General Purpose Protection,

· Grade HEF7 (1μm 1ppm) Dust Removal,

· Grade HEF5 (0.01μm 0.01ppm) High Efficiency Oil Removal,

· Grade HEF3 (0.001ppm) Super High Efficiency Oil Removal,

· Grade HEF1 (0.01μm 0.003ppm) Active Carbon

Filter Features

The air we breathe contains contamination in the form of water vapors and airborne particles. During the compression process an air compressor concentrates these contaminants and depending on the design and age will even add to the contamination in the form of oil carry over.

These problems can be avoided with the correct selection and application of compressed air filters and dryers from Crownwell. Crownwell compressed air filter features take on the features below:

  • A Perfect Seal Every Time: Moulded seal cannot be lost or mis-aligned.

  • Full Flow Inlet: Gives maximum capacity and lowest pressure drop.

  • Unique Filter Element: Is available in five filtration grades.

  • Rapid Maintenance: The no-touch process makes element replacement a quick & easy task.

  • Built in Safety: Simply push for autodrain check and bowl depressuration.

  • Differential Pressure Indicator (optional): Gives a reminder of filter element life from both sides.

  • Crownwell Oleophobic filter media actively repels oil and water to reduce pressure drop and running costs to an absolute minimum. Typical filter media soaks up oil and water increasing pressure drop, reducing efficiency and giving higher running costs.
